Capacitor

Capacitor  P/N AH244

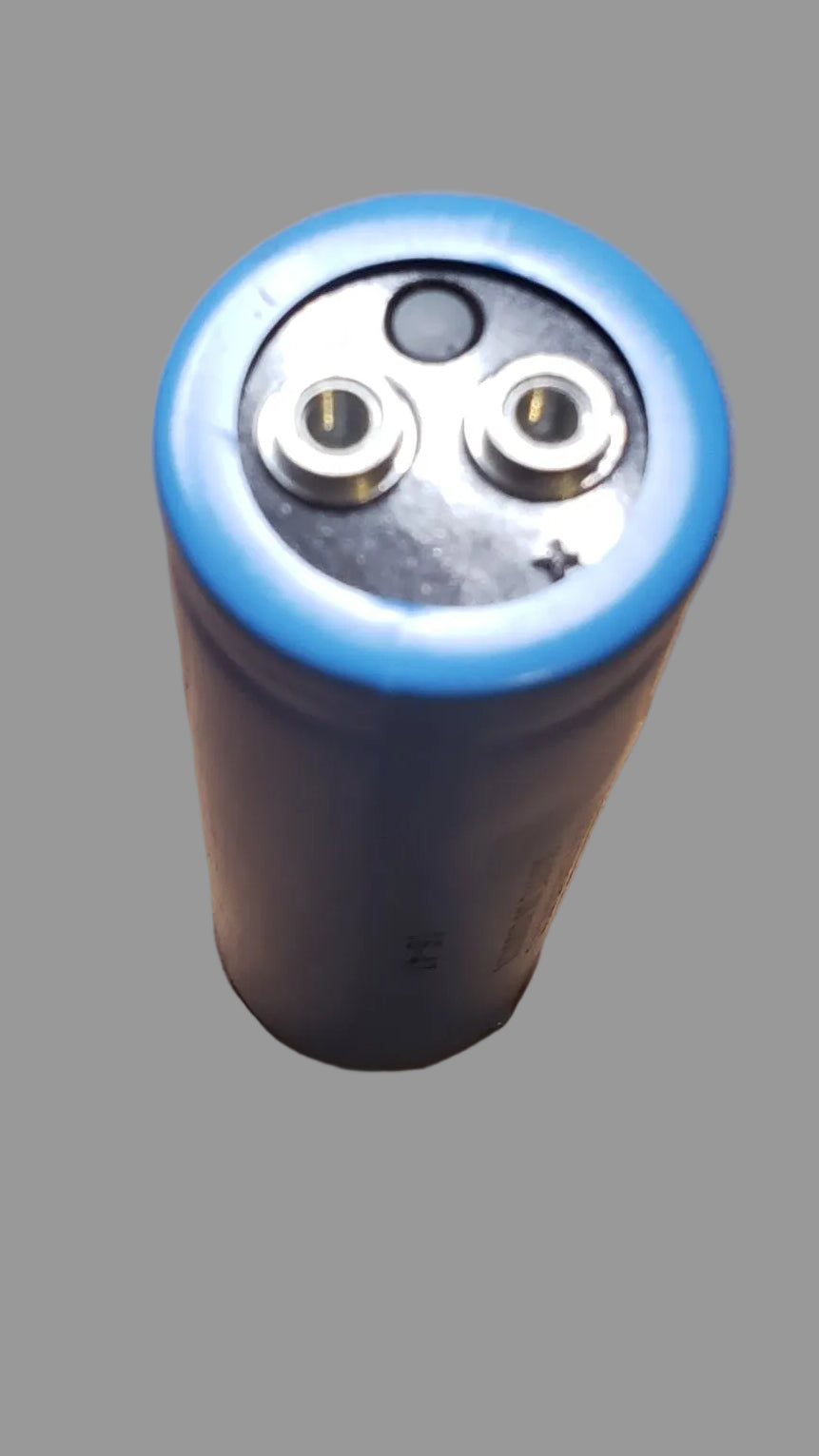

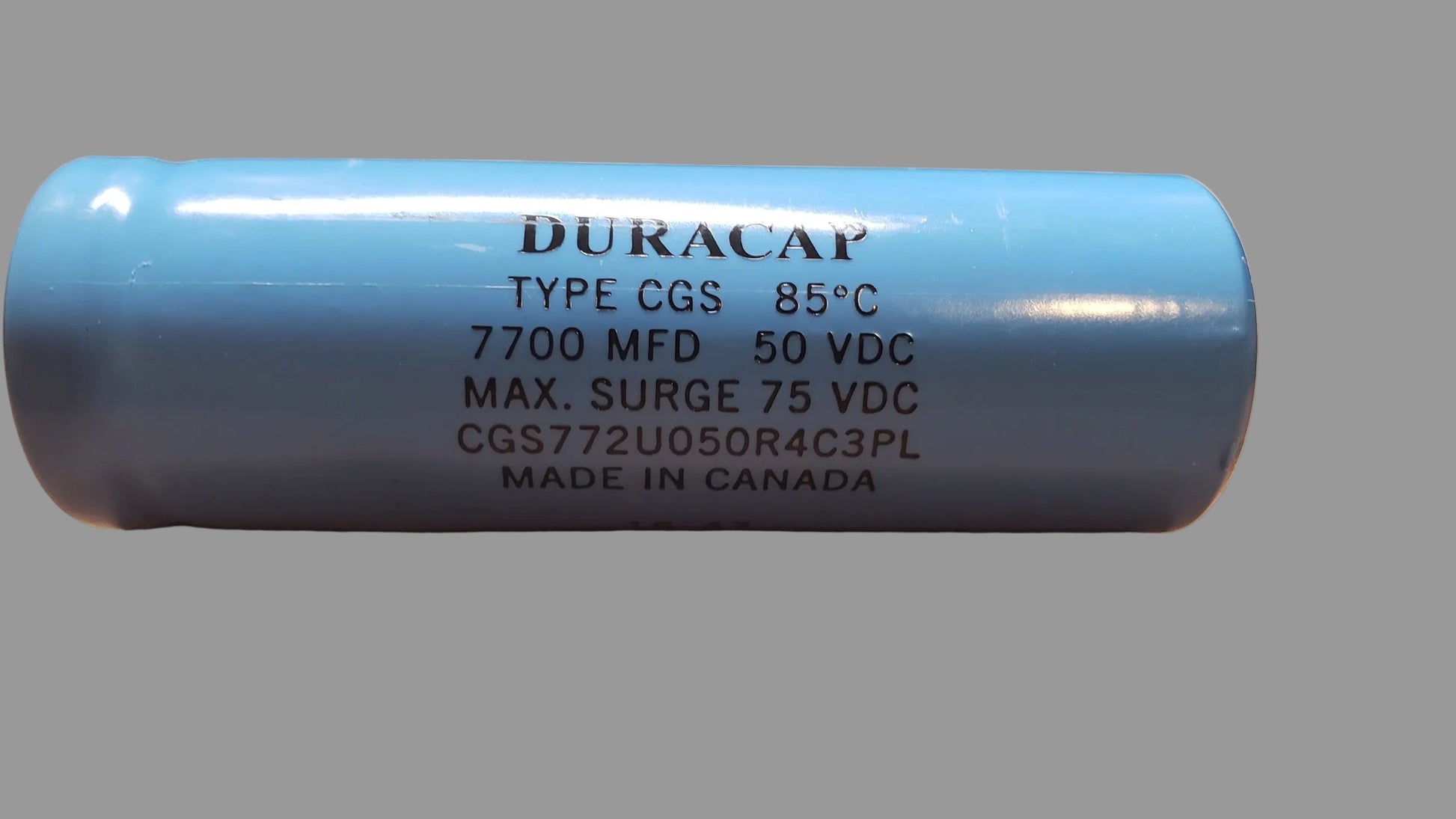

CGS772U050R4C3PL High-capacity aluminum electrolytic capacitor from the trusted CGS series — designed for demanding power applications requiring strong filtering, energy storage, and high ripple current performance. Known to be used on Braun Ambulance Boxes connected to the blower assembly.

Key Features

• Capacitance: 7500 µF — excellent energy storage for smoothing and buffering in DC circuits
• Rated Voltage: 50 VDC — supports moderately high voltage applications
• Capacitor Type: Polarized aluminum electrolytic
• Mounting Style: Screw terminal leads for secure chassis connection
• High Ripple Current Capability: Suitable for high-stress environments
• Industrial Quality: Built for reliability and long operational life

Technical Specifications

• Series: CGS Screw Terminal Aluminum Electrolytic
• Capacitance: 7500 µF nominal
• Rated Voltage: 50 VDC
• Tolerance: Manufacturer typical tolerance (industry standard for CGS series)
• Terminal Type: Screw posts — robust and easy to install
• Application: Power filtering, energy storage, DC bus stabilization, industrial electronics
